USS Yorktown (CV  5)
Yorktown Class

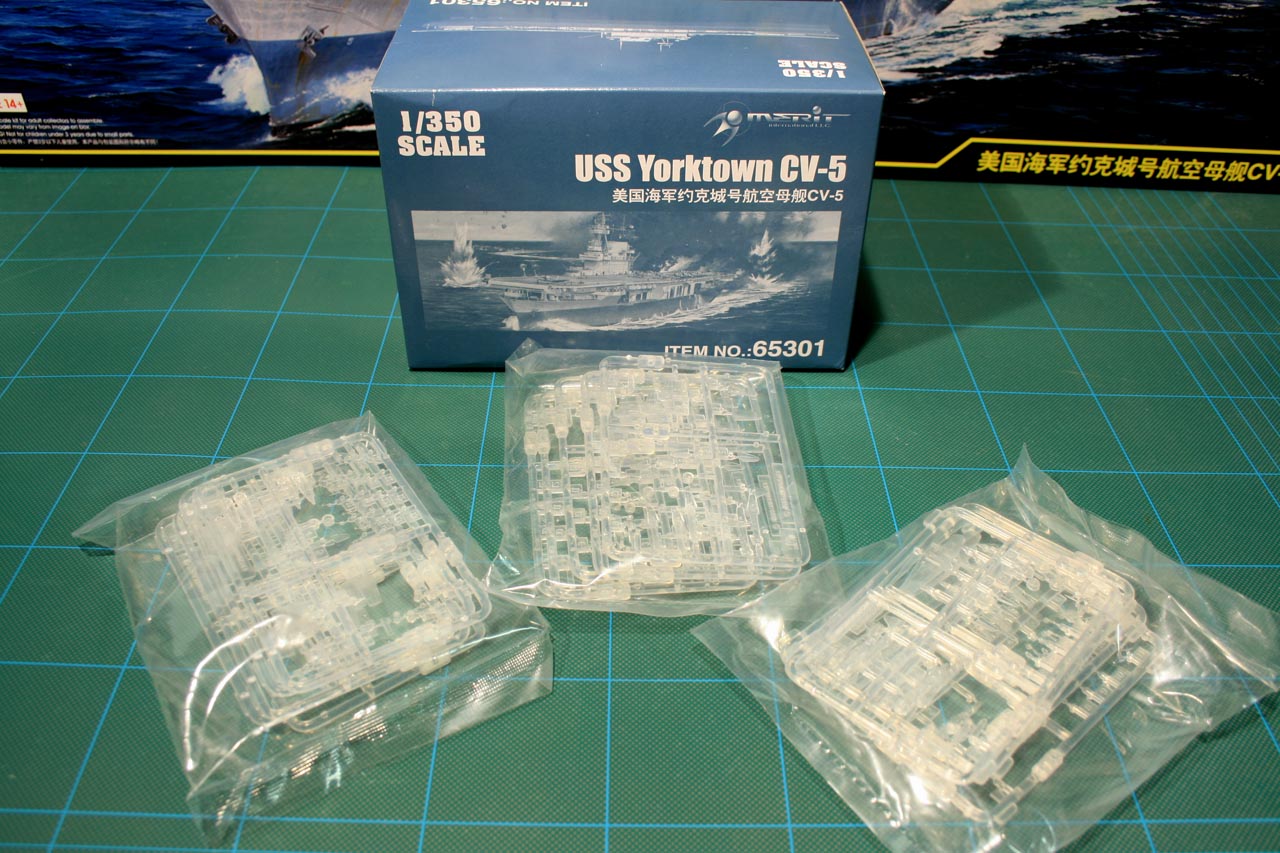

Plastic kit 1/350 scale by

(As built, 1937)
Displacement: 19,800 tons standard; 25,500 tons full load
Dimensions (wl): 770' x 83.25' x 25' 11.5" (full load)  /  234.7 x 25.4 x 7.9 (full load) meters
Dimensions (max.): 824.75' x 109.5'  /  251.4 x 33.4 meters
Armor: 4"-2.5" belt; 60 lbs protective deck(s); 4" bulkheads; 4" (side)-2" (top) conning tower; 4" (side) over steering gear
Power plant: 9 boilers (400 psi); steam turbines; 4 shafts; 120,000 shp
Speed: 32.5 knots
Endurance (design): 12,500 nautical miles  15 knots
Armament: 8 single 5"/38 gun mounts; 4 quad 1.1"/75 machine gun mounts; 24 .50-cal machine guns
Aircraft: 90+
Aviation facilities: 3 elevators; 2 flight-deck and 1 hangar-deck hydraulic catapults
Crew: 2,217 (ship's company + air wing) (1941 figure)

USS Yorktown (CV 5) 1938

Measure 12
Graded System
(Source: Ships-2 Rev. 1 September 1941)

Vertical Surfaces:

Vertical surfaces from boot-topping to level of  main deck or highest sheer line, continuous for full length, on all vessels except carriers, Sea Blue 5-S.
On carriers, including Lexington and Saratoga, from waterline to level of hanger deck, Sea Blue, 5-S.
Vertical surfaces above main deck level, (hanger deck of carriers) to level of the top of the highest  superstructure masses, Ocean Gray 5-O.  Pole masts, yards, slender upper works above level of top superstructure masses, Haze Gray 5-H.

Horizontal Surfaces:

Horizontal surfaces, Deck Blue, 20-B.

Wood Decks:

Wood decks except on submarines and carriers shall be darkened to the color Deck Blue.  Deck Blue paint shall be used in lieu of stain for this purpose.

Canvas Covers:

Canvas covers visible from the outside vessel are to be dyed a color corresponding to Deck Blue.


The camouflage painting need not be exact or carried into corners.  Small gear, wires, rigging, and areas permanently in shadow, as under boats, etc., need not be painted with the camouflage colors.  There is no objection to exact or careful painting which may be desired for the sake of good appearance at close range.
All bright or shiny objects, no matter how insignificant, shall be painted, covered, or removed.
Glass windows shall be covered or removed, especially during the day in sunny weather, and at night when anticipating searchlight discovery.  Insofar as conditions permit, similar precautions shall be taken on airport lenses.
